Hi All,

Definitely good advices regarding GI settings. For me one of the most
important ones was GI brightnes which introduces some nice dynamic in
scene lightning.
Like you guys I spent hundreds of hours tweaking the setttings. I use
(used to?) different curves for interior and exterior lightning.

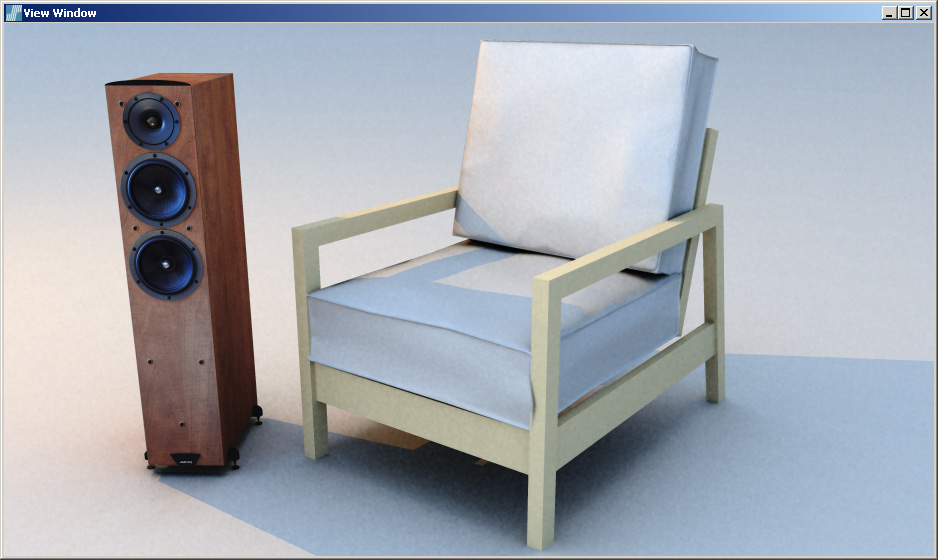

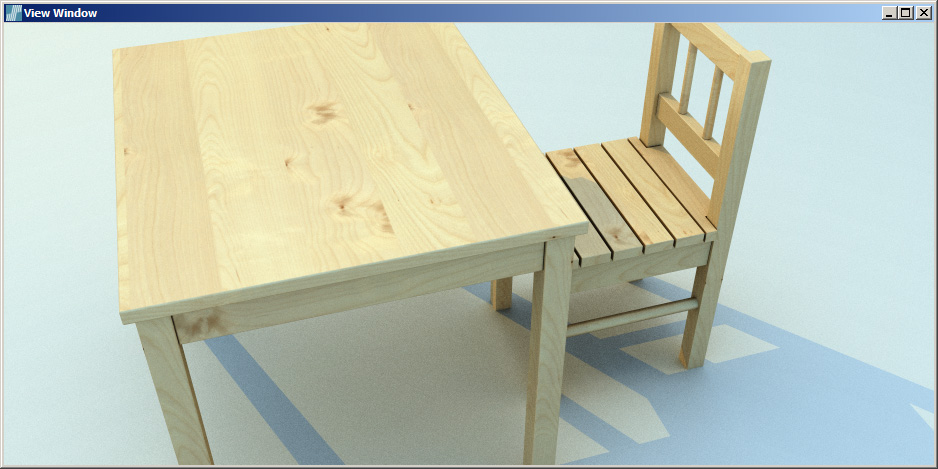

Have a look at the attachments. BTW, sometimes I left some noise by
disabling blurring at all as in my opinion sometimes it just kills GI in
Realsoft.
It's better I think to adjust ray counts for a while and decide what
level of rendering time is acceptable for us while working with the object.

Best Regards,
Artur


On 2017-05-18 00:51, Mark Heuymans wrote:
>
> Hi Robert,
>
> All good advice, nice to see the list is still alive :)
>
> I saw that you're using Global Illumination. A very difficult and
> complicated feature in RS3d !
> The infamous Garry and me did some heavy testing, trying to optimize
> GI settings in RS... must be at least a decade ago.
>
>
> But computers in 2017 are dream machines compared to the noisy heavy
> monsters from those days. RS runs fine on a cheap multi-core 64-bit
> machine with 16 gigs of ram, so on such a machine we can crank up
> these settings:
>
> - increase Ray Count in the GI material: makes use of all the CPU
> cores, including hyperthreaded. The higher the better, unfortunately
> it's maxed out at 100 by a slider (v6)
> - decrease Blur Level and Blur Iterations in Post Image Effects. But
> beware: if it's too low, noise is introduced.
> - perhaps modify things like GI_blur_reflected, GI_brightness_control,
> blurwidth_control
>
> Or export the scene as .obj and render with other software.
>
> Good luck!
> Mark H
>
>
>
> Op 16-5-2017 om 19:29 schreef Robert den Broeder:
>>
>> Many thanks Jan! Will try! And of course I will post updates of my
>> image to show my progress.
>>
>> Initially this started as a test if I could make the pen… now it
>> should become more interesting than that ;- )
>>
>> Best regards,
>>
>> Robert
>>
>> *Van:*User-list [mailto:user-list-bounces at realsoft.com] *Namens *Jan
>> Schmitz
>> *Verzonden:* dinsdag 16 mei 2017 18:22
>> *Aan:* user-list at realsoft.com
>> *Onderwerp:* Re: [User-list] i have a pen..
>>
>> Hi Robert,
>>
>> in addition to Lees excellent mail, I'd like to give some further
>> suggestions. I quickly pulled the image into photoshop and sketched
>> the things that can be improved, to gain a more realistic and more
>> appealing render. (Download the image and toggle between the to
>> versions, to see the adjustments better).
>>
>> 1. Clean reflections: In product photography you usually don't want
>> to see the whole room in the reflection, so you set up a bunch of
>> grey to white gradients, that appear in the reflections. This helps
>> us to instantly recognize the material as a chrome material.
>>
>> 2. The cap at the end of the pen doesn't seem to have a shader, it
>> renders constant black. You'll need something there, that resembles
>> plastic or rubber and gives some smooth reflections. (As Lee already
>> said)
>>
>> 3. The camera is very telephoto, so you'd expect some depth of field.
>>
>> 4. The wood texture needs a lot more contrast.
>>
>> I hope this helps, the pen looks really nice!
>>
>> Kind regards,
>>
>> Jan
>>
>>
>> Jan Schmitz
>> Meyerheimstraße 1
>> 10439 Berlin
>>
>> +49 151 418 431 04 <tel:+49%201514%201843104>
>>
>> On 16 May 2017 at 17:44, Robert den Broeder <r.den.broeder at chello.nl
>> <mailto:r.den.broeder at chello.nl>> wrote:
>>
>> Thank you for your time and comments Lee!! Much appreciated. I'll try
>> to work with your suggestions and see how it turns out.
>>
>> Best regards,
>> Robert
>>
>> Verstuurd vanaf mijn iPhone
>>
>>
>> > Op 16 mei 2017 om 17:30 heeft leee <leee at spatial.plus.com
>> <mailto:leee at spatial.plus.com>> het volgende geschreven:
>> >
>> >> On Sunday 14 May 2017 16:29:37 Robert den Broeder wrote:
>> >> Hi all,
>> >>
>> >> Today I created a pen in RS3D and did some GI rendering tests.
>> What can I
>> >> do to improve image quality?
>> >>
>> >> Regards,
>> >>
>> >> Robert
>> >
>> > I think it's fair to say that, in 3D, if you're going to make something
>> > reflective then you should make sure there's something to be
>> reflected by
>> > it.
>> >
>> > In your image, the tip of the pen appears to be reflective and the
>> lower
>> > half is reflecting the desk upon which it sits but the upper half just
>> > looks almost flat-black.  The clip also suffers from the same
>> problem - it
>> > looks too 'flat'.
>> >
>> > Assuming that you want to portray the pen on a desktop, I'd place
>> the entire
>> > scene within a hollow analytical cube and parallel map some stock
>> office
>> > wall photographs to each of the 'walls'. Depending on the angles, I
>> might
>> > also fake an office light on the ceiling.
>> >
>> > The black cap at the clip end of the pen, which looks as though
>> it's not
>> > intended to be reflective, doesn't show any detail to 'fill out' its
>> > shape - you can't separate the cylinder wall from the endcap and
>> you can
>> > only tell that it's a short cylinder from its profile/silhouette -
>> playing
>> > around with its specular properties and adding a small amount of
>> reflection
>> > should enable you to get some differentiation between the cylinder
>> walls
>> > and the endcap.  I can see a narrow strip of specular reflection
>> along the
>> > barrel and clip extension, and that looks good, but I'd extend that
>> to the
>> > endcap and at the same time make it a little more diffuse, so that the
>> > specular strip is wider i.e. spreads further around the
>> circumference and
>> > covers a greater arc than on the barrel.  Is the endcap slightly
>> domed?  I
>> > can't tell because of the lack of depth but if it isn't then I'd
>> make it
>> > so.
>> >
>> > Last thing I'll mention is the tiling of the desktop material - this
>> > wouldn't be a problem if you were going to crop the image - but this is
>> > 3D - just don't render what you don't need.
>> >
>> > Yes, I'm being nit-picky here, but making something photo-real is
>> all about
>> > the details.
>> >
>> > LeeE
>> >
